Description
Applications
- Super duplex stainless steel version available for applications requiring high strength and corrosion resistance
- Intended to isolate the pressure gauge from the measured fluid or to provide a means of throttling or dampening pressure pulsation
Special Features
Pressure Rating
Brass: 6,000 PSI
Steel / 316SS 10,000 PSI
Operating Temperature
Media: max. 200°F (+93°C)
min. 0°F (-18°C)
Flow Rate
Hard seat models Max. Cv = 0.42
Standard Features
Valve Body
360 Brass, 12L14 nickel-plated carbon steel, or electro-polished 316 stainless steel
Bonnet
360 Brass, 12L14 carbon steel or 316 stainless steel
Valve Stem
360 Brass or 316 stainless steel
Handle

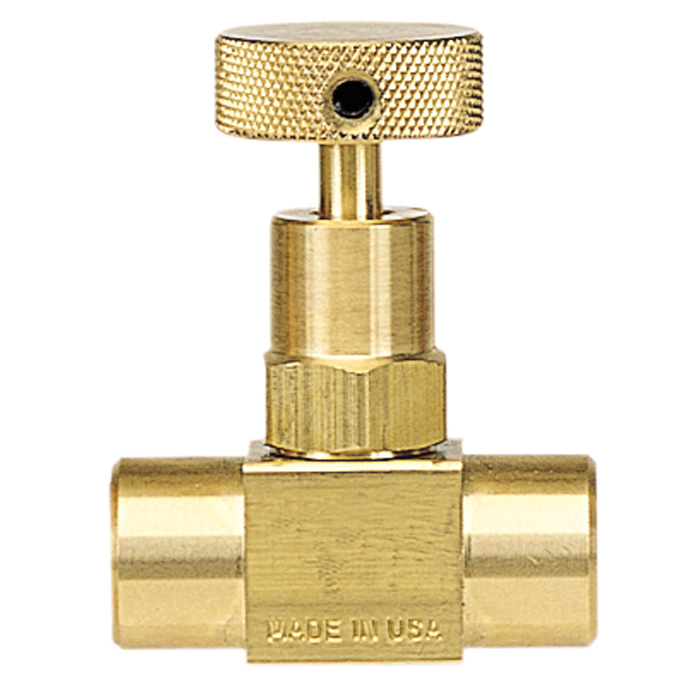

360 Brass, 12L14 carbon steel or 316 stainless steel. Brass mini-valves supplied with knurled knob standard. Carbon steel and stainless steel mini-valves supplied with tee-handle.
Handle Bolt
360 Brass, 12L14 carbon steel or 18-8 stainless steel
Stem Seals
Viton o-ring with PTFE backup ring
Orifice Size
0.172″ (4.37 mm)
Standard Threaded Connection Size
1/8″ NPT or 1/4″ NPT
Order Options
Alternate threaded connection
