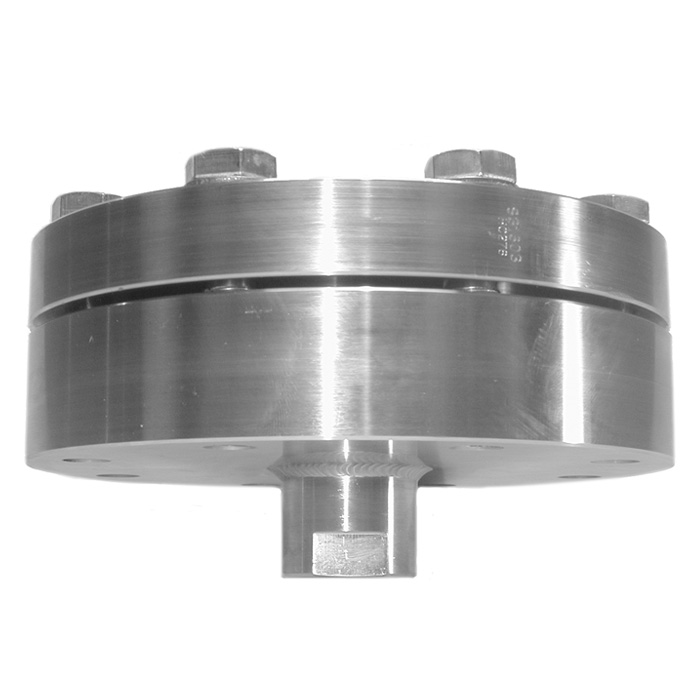

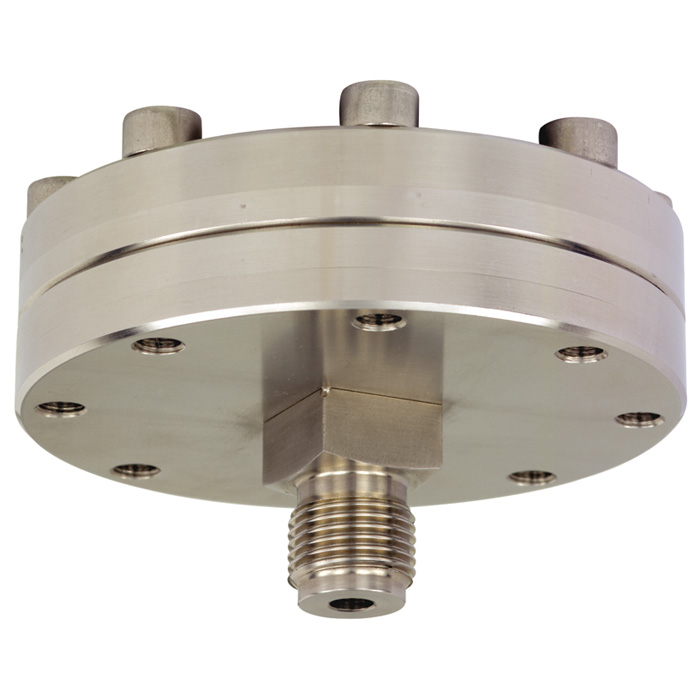

Description
Applications
- For assembly (direct assembly, via a cooling element or a capillary) with measuring instruments for low pressures and with differential pressure measuring instruments
- For corrosive, contaminated or hot media
- Filter monitoring
- Level measurement
Special Features
- Internal diaphragm with large working volume
- Special materials available
- Low temperature error due to large diaphragm diameter (realisation of low measuring ranges possible)
- Wide temperature application range due to large working volume
- Integrated flushing connections (optional)
Description
Process connection
Thread
Nominal pressure
1500 psi – 3½” diaphragm
Pressure ranges
max. 0 … 1500 psi
Upper housing
Stainless steel 316L
Diaphragm
Stainless steel 316L, welded with upper housing
Sealing
PTFE (up to a maximum of 260 °C)
Lower housing (process connection)
Stainless steel 316L,
½ NPT (female), G ½ (female)
½ NPT or M20 x 1.5 (male), G ½ (female)
Screws
Stainless steel
Measuring instrument connection
Direct assembly (weld-in connection)
