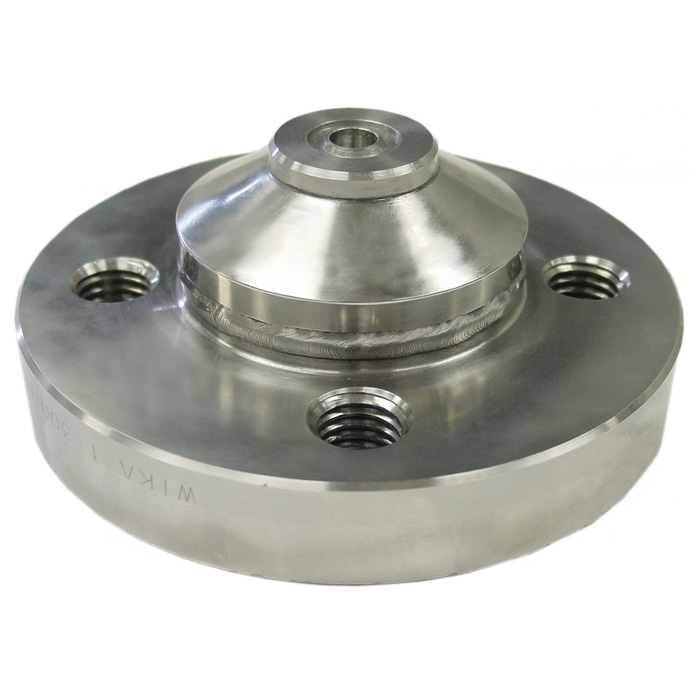

Description
Applications
- Process industry diaphragm seal to combine with Bourdon tube pressure gauges.
- Intended for corrosive, contaminated, hot or viscous pressure media.
Special Features
- All-Welded Design
- Flanged Process Connection
- Taped Holes in Lower Housing
Applications
Internal diaphragm, upper and lower housing welded; requires hydraulic fluid to transmit pressure to the instrument.
Process Connection
Size: ½” to 2″ per ASME B16.5
Class: 150# to 1500#
Instrument Connection
Capillary, ¼” or ½” NPT-female
Suitable Pressure Ranges
Typically for Bourdon tube gauges 15 psi to 1500 psi
Available Options
(connections, materials, flushing ports, etc.)
See Selection Guide on data sheet. Contact factory for special designs.
Volumetric Data
Displacement typically for 2.1″ SS diaphragm ΔV = 1.37cm3
Total cavity volume Vo = 2.4 cm3
