Description
Applications
- Food & Beverage and Pharmaceutical industry diaphragm seal to combine with Bourdon tube pressure gauges.
- Intended for hygienic pressure media.
Special Features
- Sanitary Process Connection (Cherry Burrell®)
- Material Selection
- Male or Female Connection
Description
Application
Food & Beverage and Pharmaceutical industry diaphragm seal to combine with Bourdon tube pressure gauges. Intended for hygienic pressure media.
Design

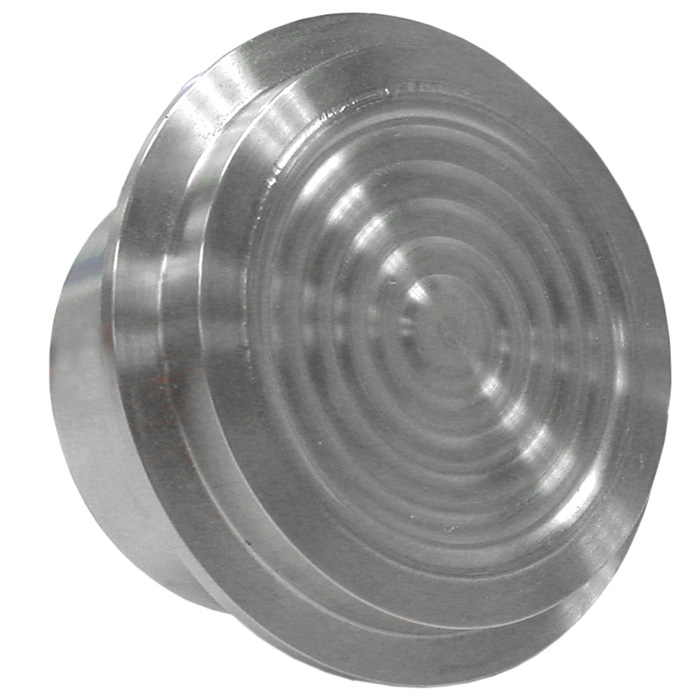

External, flush diaphragm for Cherry Burrell® connection, which requires hydraulic fluid to transmit pressure to instrument
Process Connection
1 ½” to 3″ (I-Line)
Instrument Connection
Capillary, ¼” or ½” NPT-female
Suitable Pressure Ranges
15 PSI to 350PSI (up to 500PSI)
Available Options (connections, materials, etc.)
See Selection Guide on data sheet
